15/20/30/50/100m 24K 17ohm/m Infrared Carbon Floor Heating Cable 3mm Warm Floor Wire


Product Details:

Product Name: Carbon fiber heating wire
Insulating materials: Silicone rubber
Temperature: 200 degrees celsius limit
Heating conductor: 24K
High voltage test: 3000V
Leakage current: 0.05mA/m
The product can withstand the power of power: 25W/M

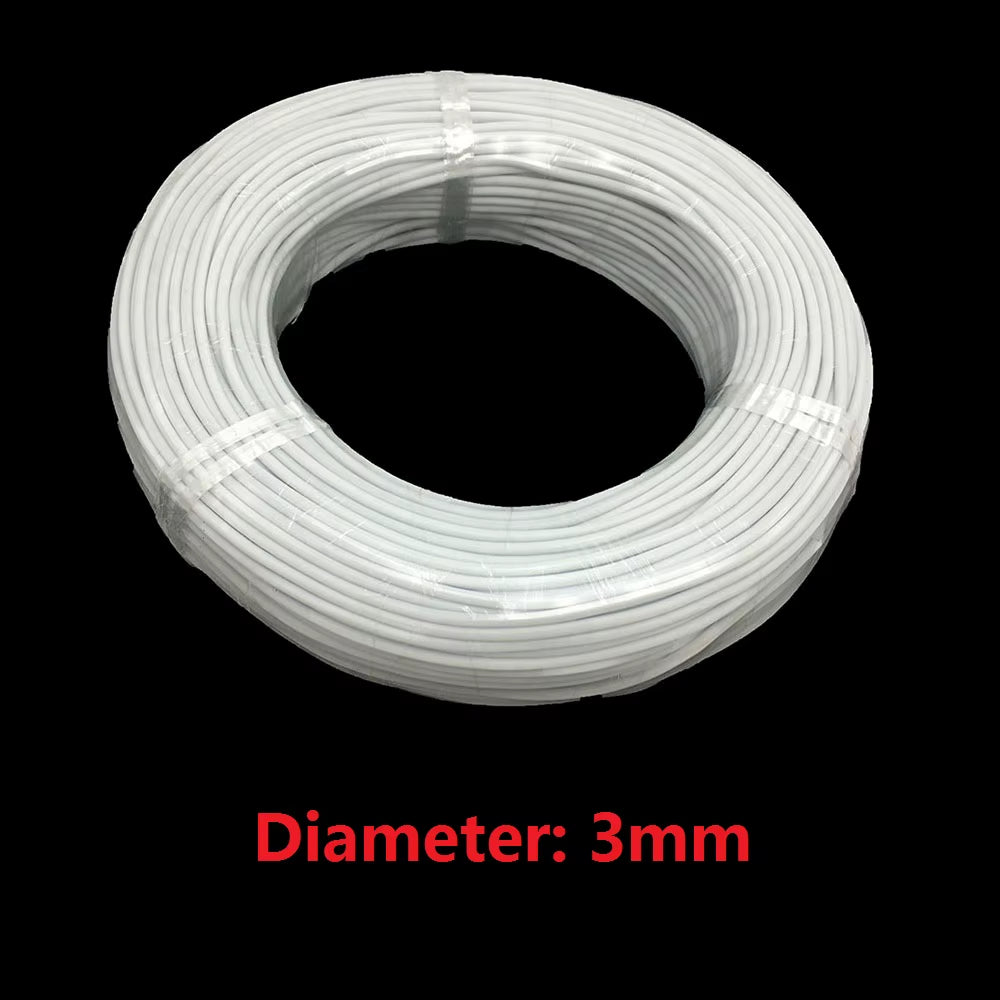

Diameter: 3±0.2 MM
Optional colors: White (can customize)
Infrared wavelength: 8UM-18UM
Conductor resistance: 17 ±10% Ω / M

The cable is suitable for underfloor heating system, 12.5 meters per piece can cover 1.5 square meter area, you can connect many pieces of 12.5m length in parallel connection to creat a warm floor system for your house : )

If you need 24K 17ohm/m 4mm thickness type, please click

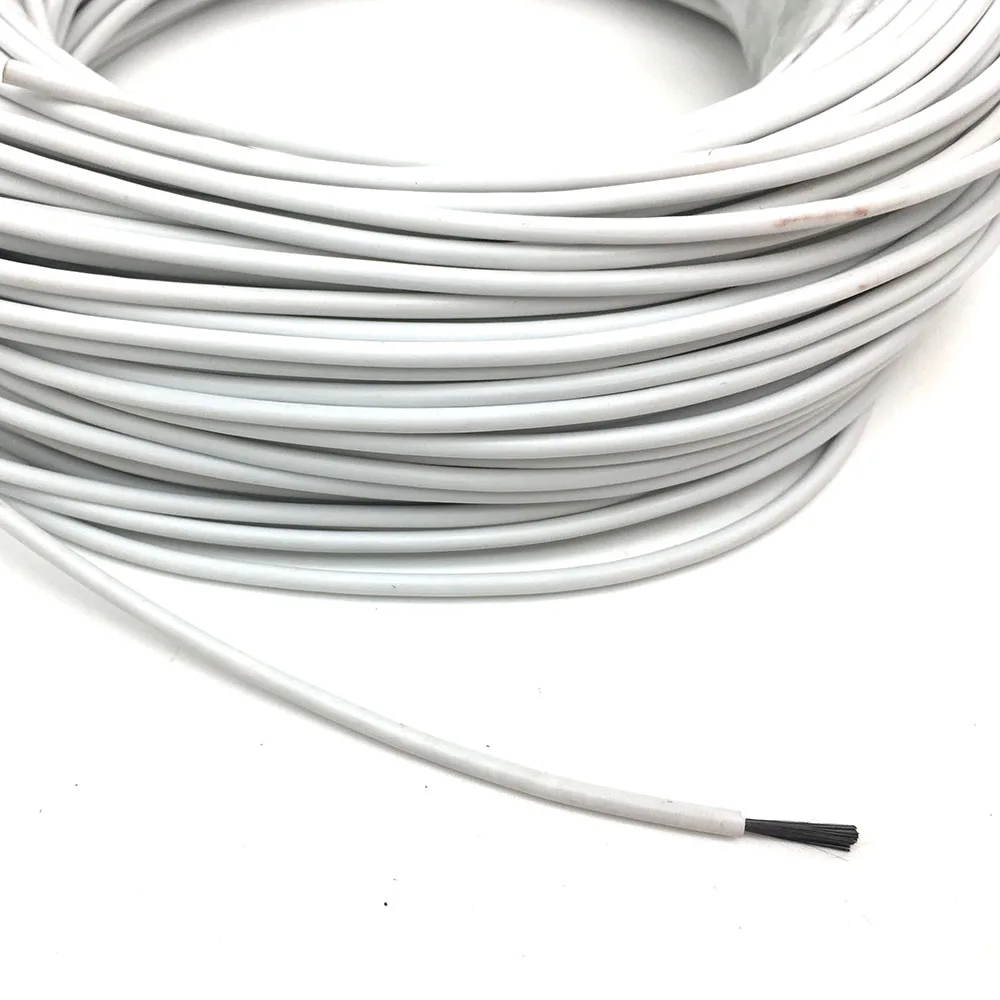

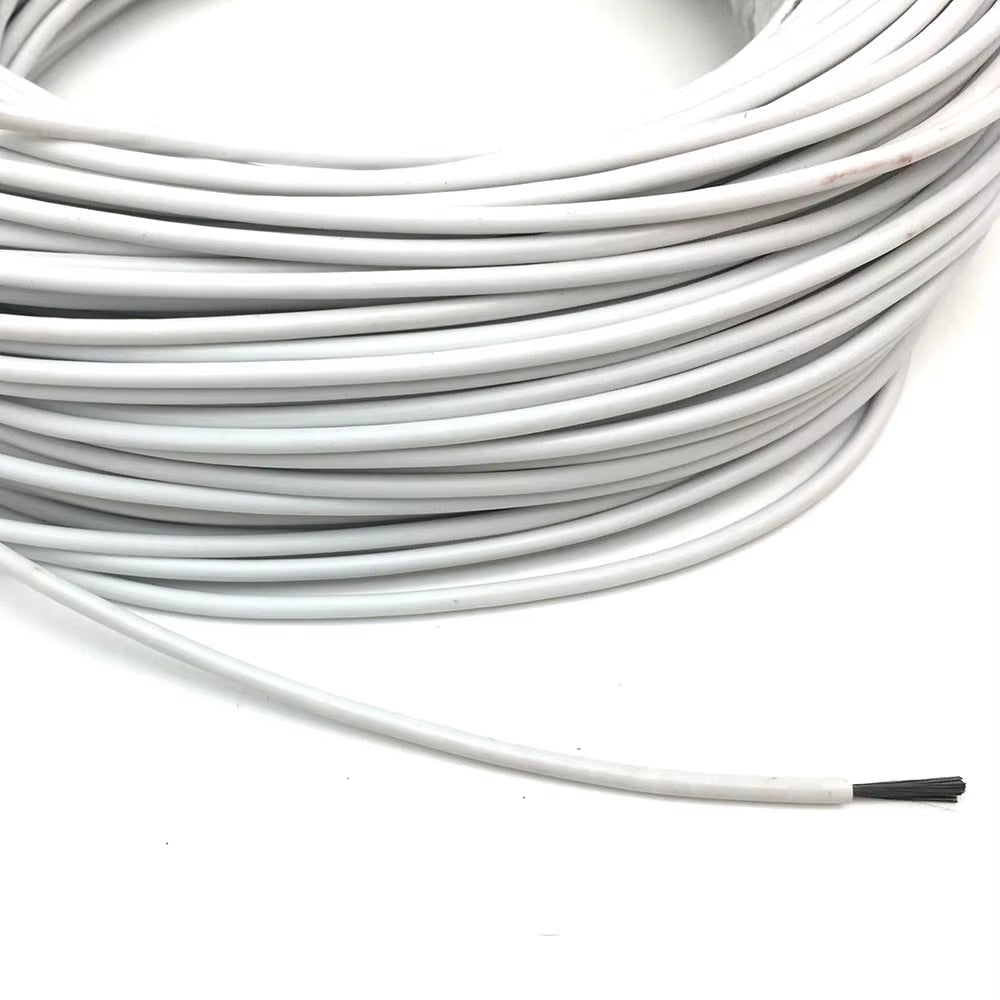

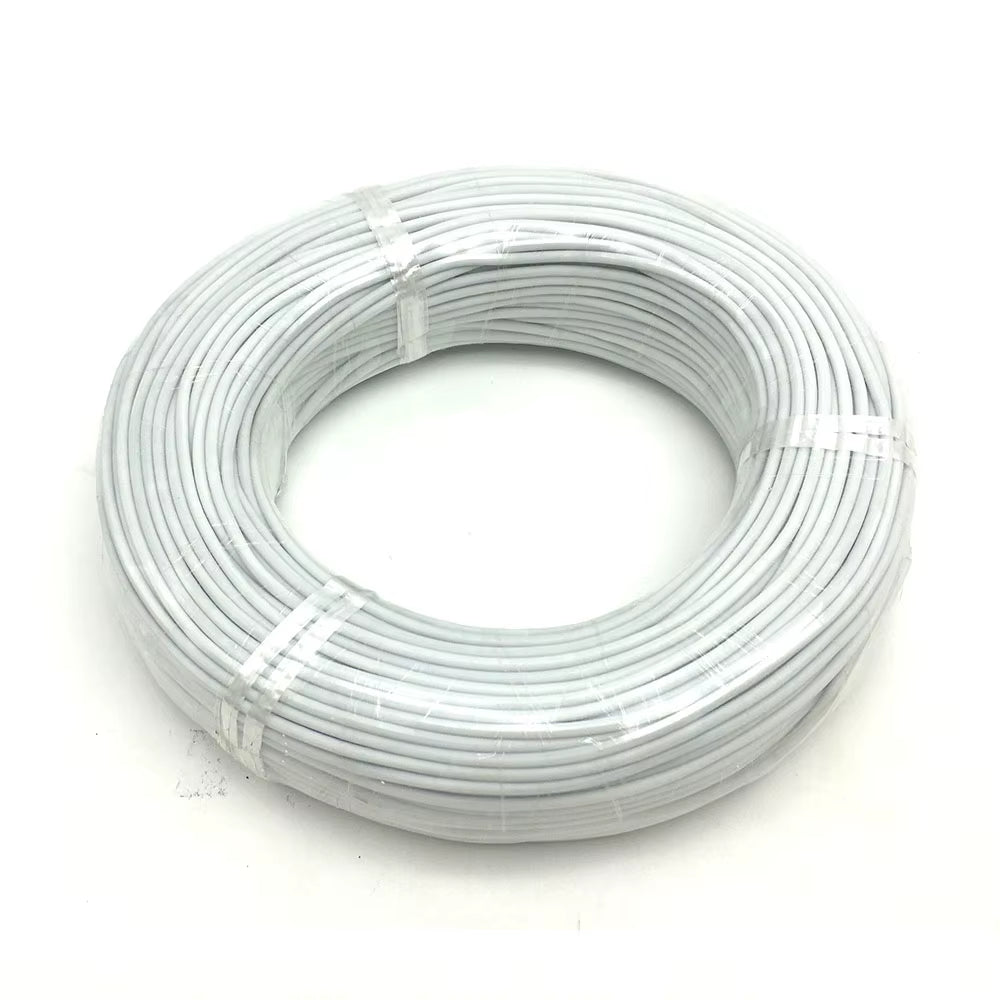

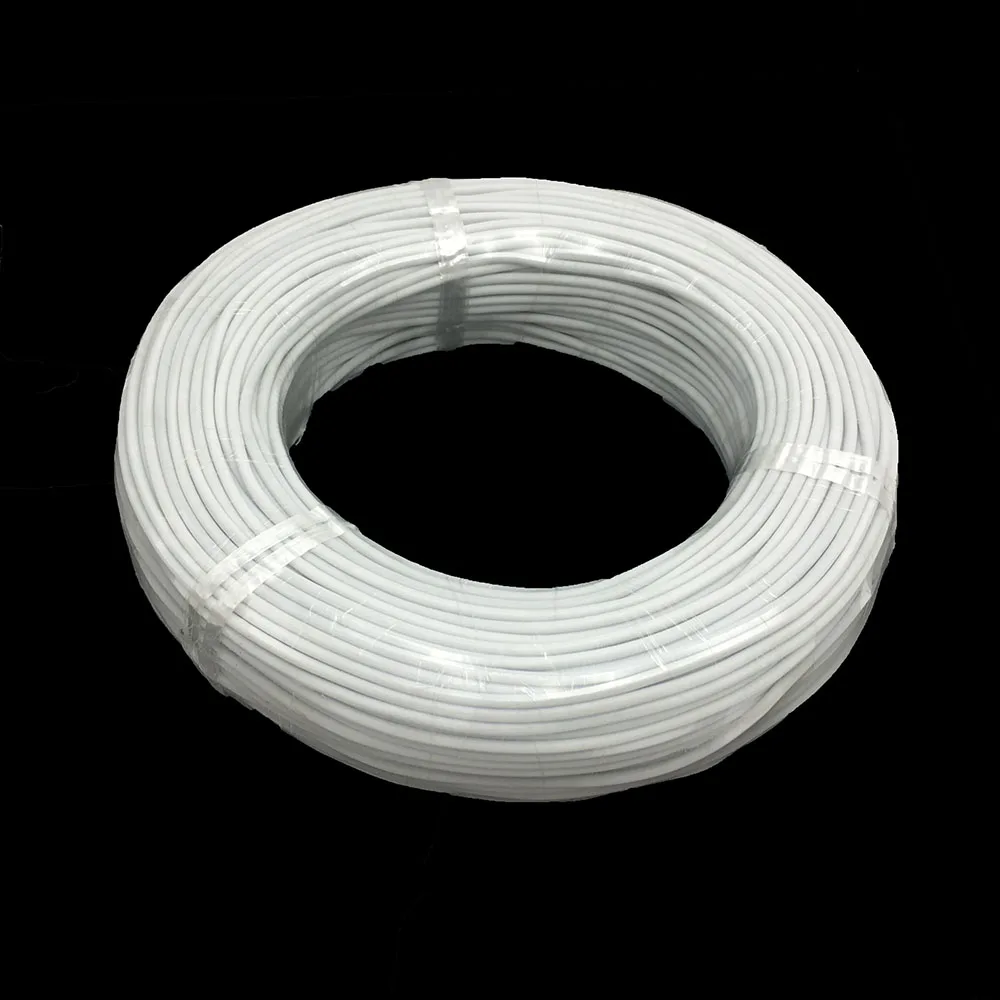

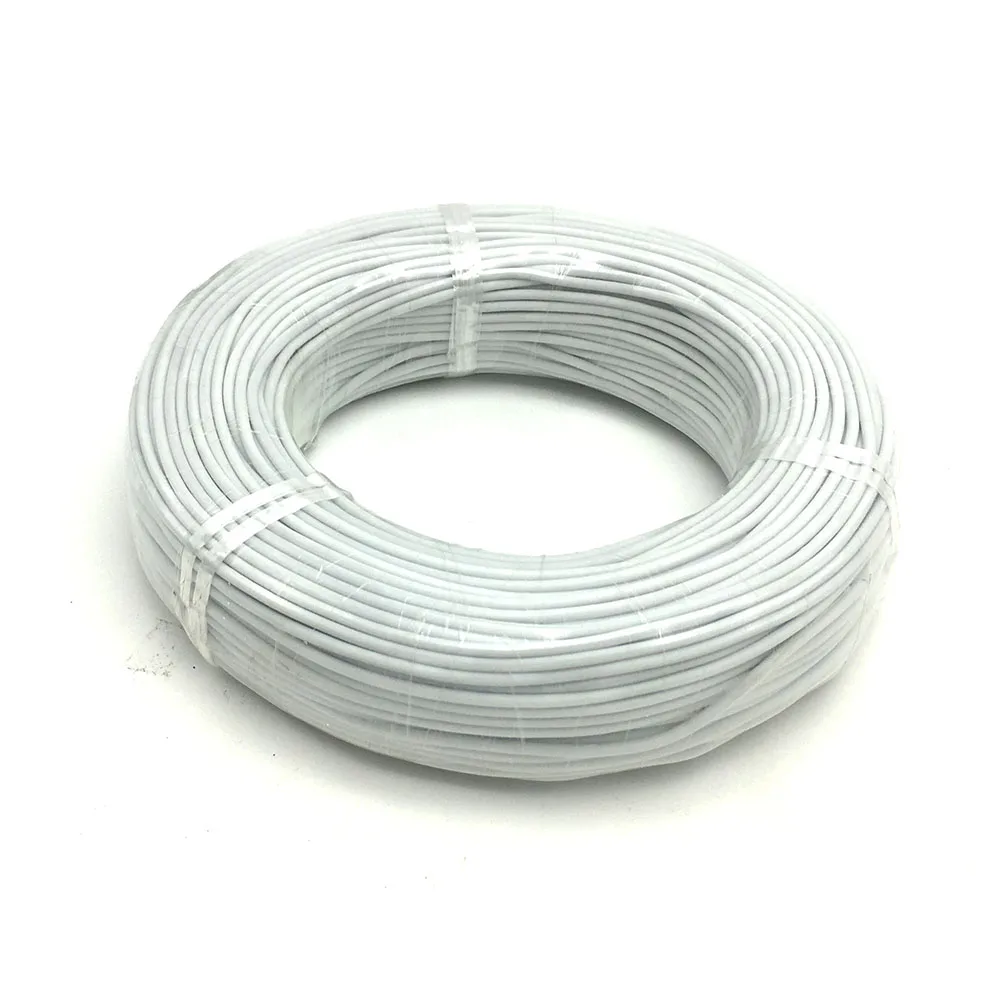

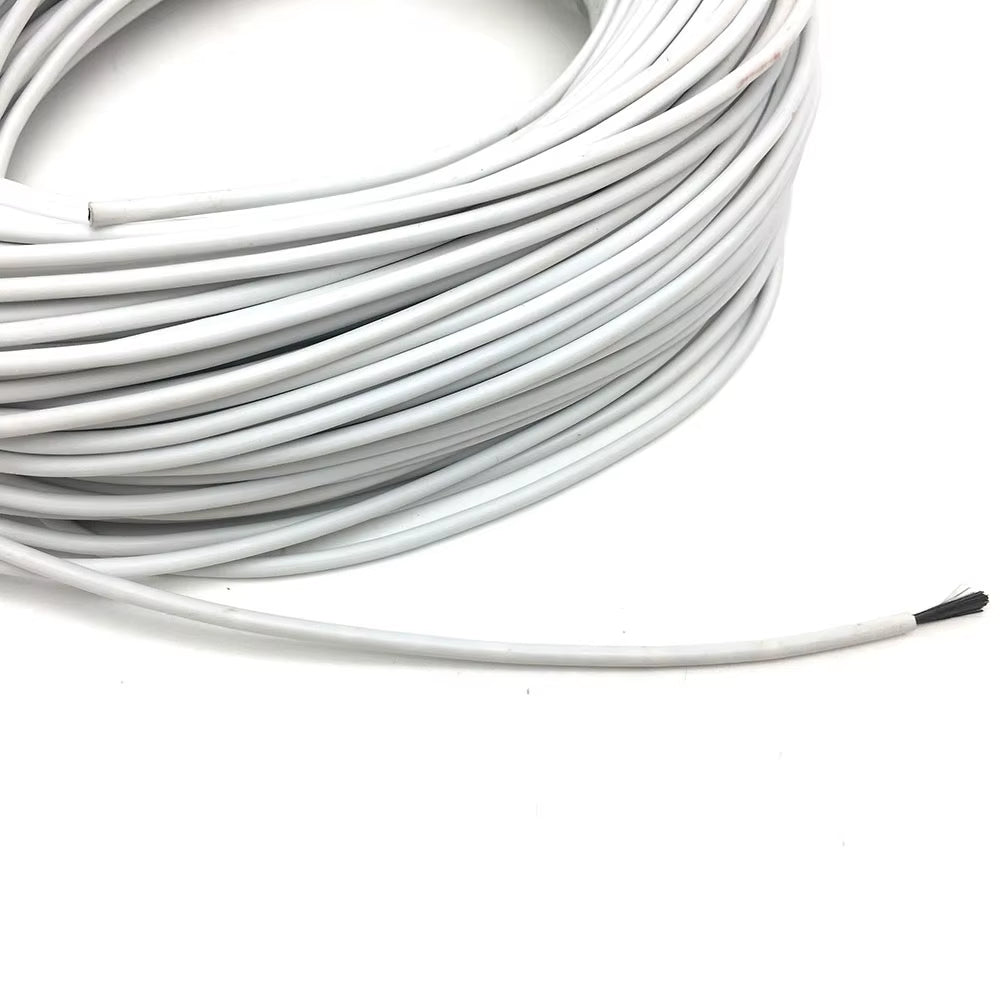

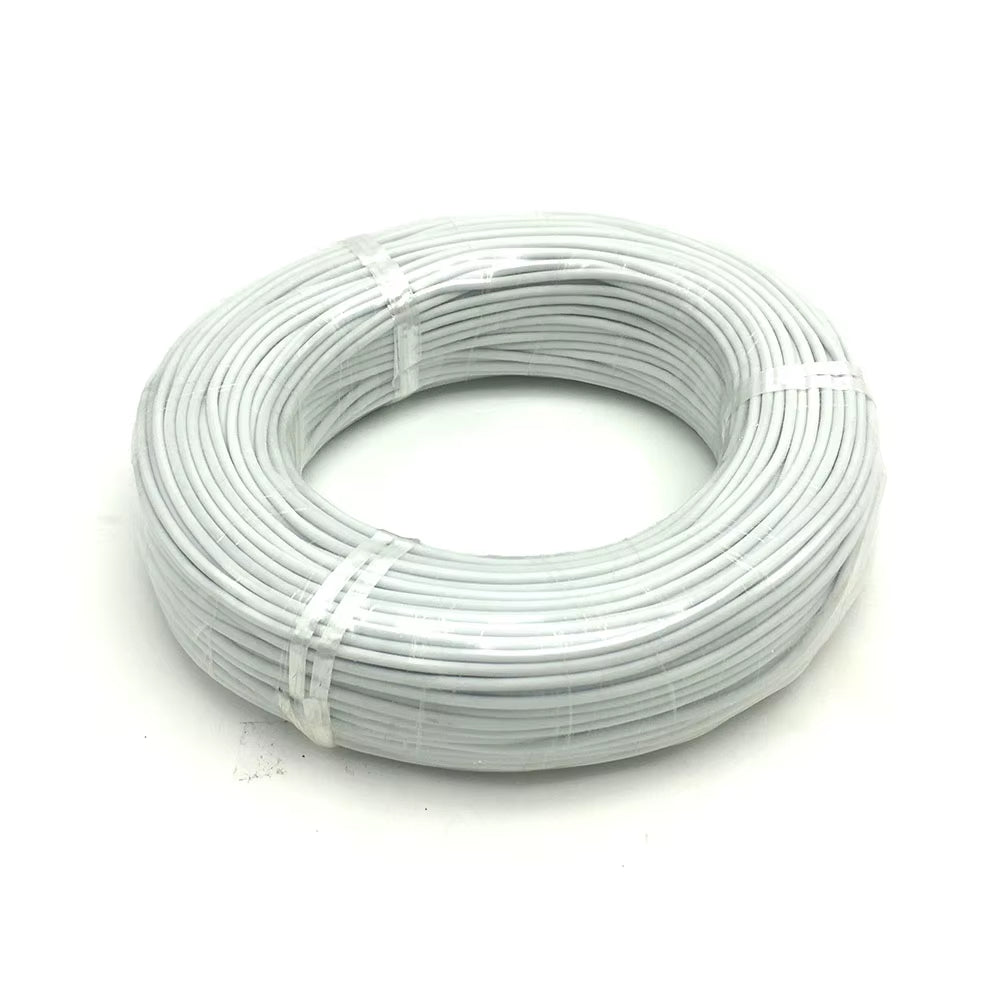

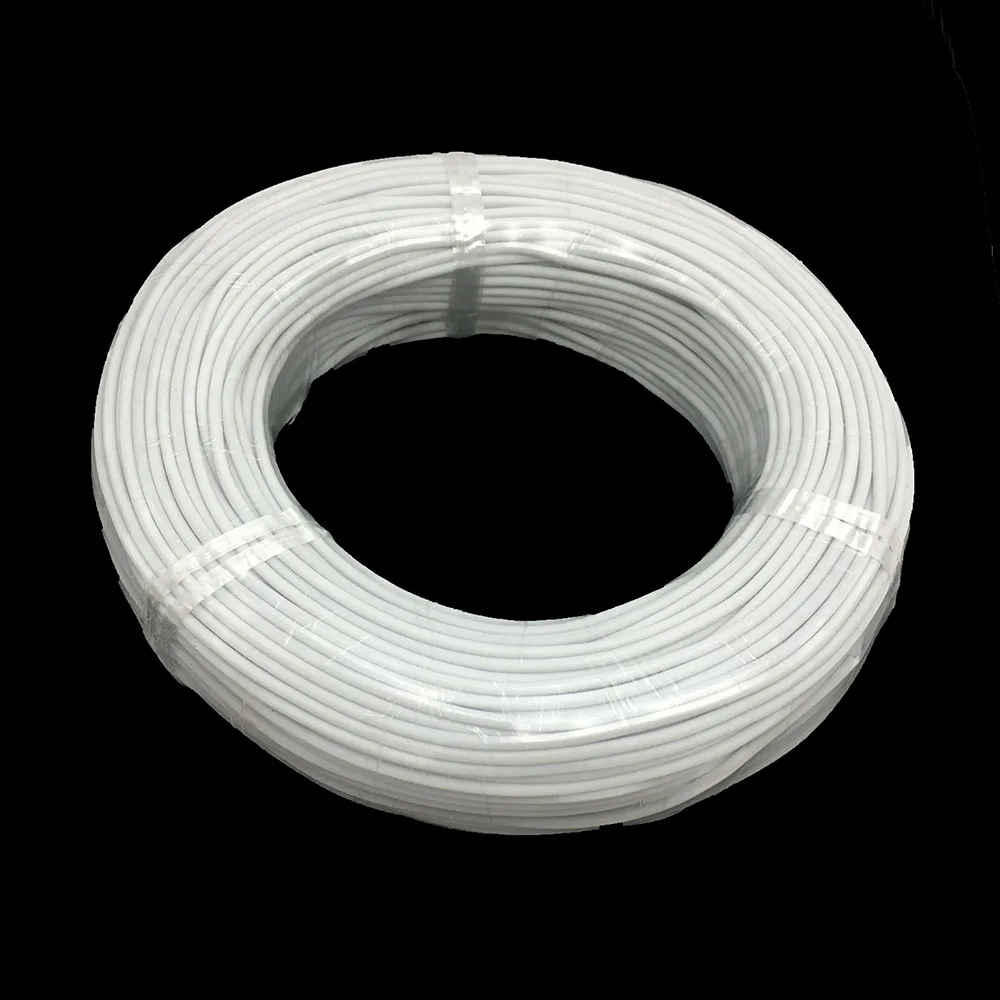

Product Photos:

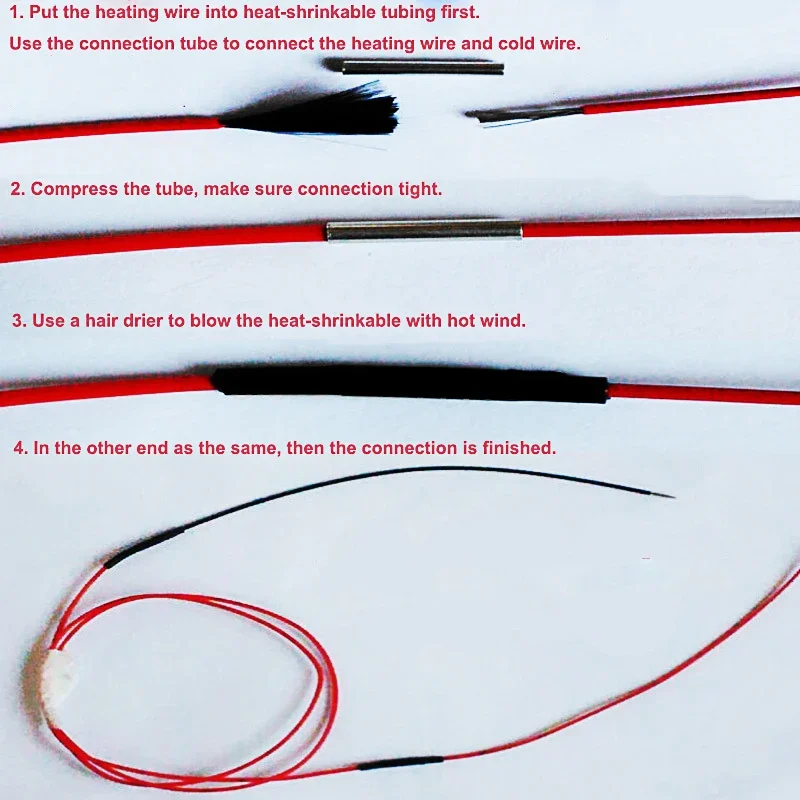

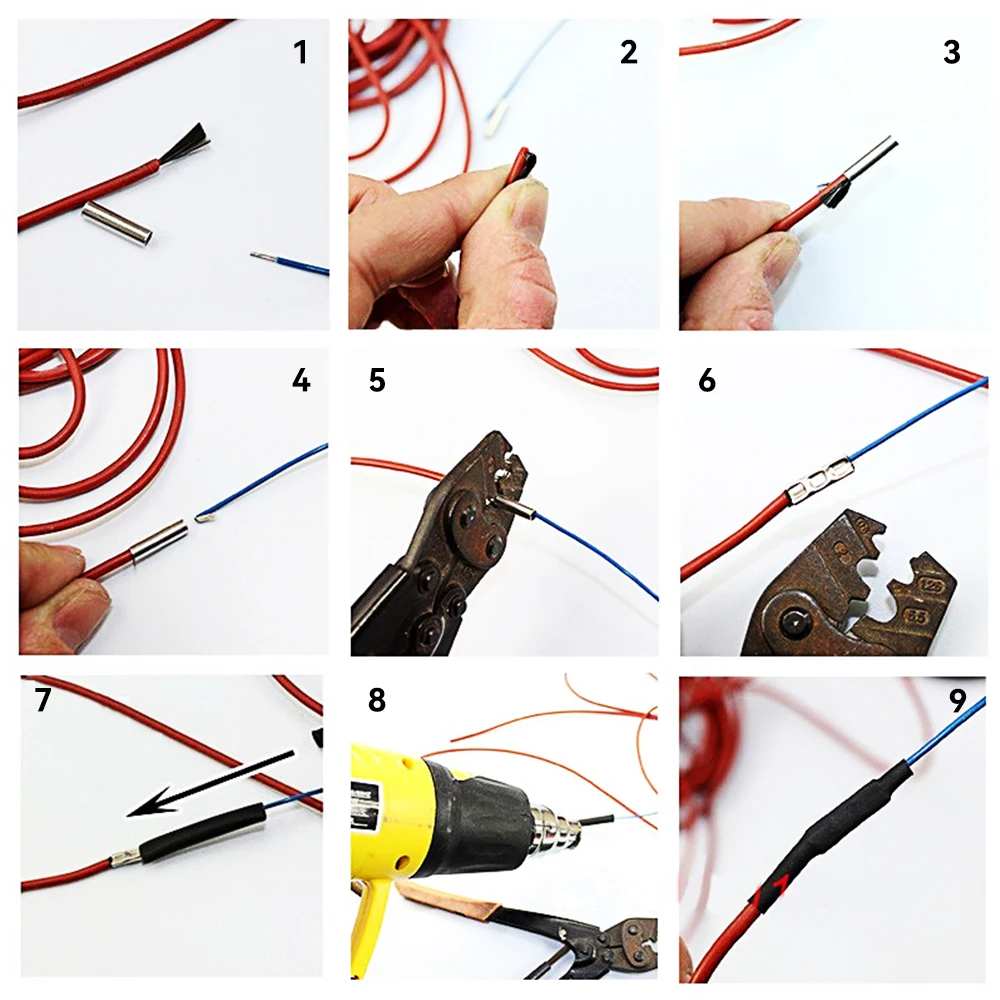

How to wiring?



Product Applications:

1. Floor heating for Home and office: Homes, villas, hotels, office buildings, hospitals, shopping malls

2. Floor heating for public areas: Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten

3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways

4. Floor heating for professional field: Botanical garden, greenhouse, laboratory

And other heating applications..etc...


Product Power Calculation:

Voltage * voltage / total resistance = power

For example: 24K carbon fiber, length of 12.5 meters

220V × 220V / (12.5 m x 17 Ohm) =228 watts

Product Advantages:

1. High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.

2. Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.

3. Easy to install: The carbon fiber heating wire cost a little, and has a long life span, an investment, life-long benefit, low maintenance costs.

And etc...
